[Clearance Sale] Japan HIKOKI Hitachi CS3630DB MV (36V) 12-inch brushless chain saw machine - clean machine

sold in last hours
People are viewing this right now
$1,999.00 $1,280.00

shape: Cleaner

Cleaner
Add to Wishlist
Ask a Question
Description

MV Brushless Chain Saw CS3630DB

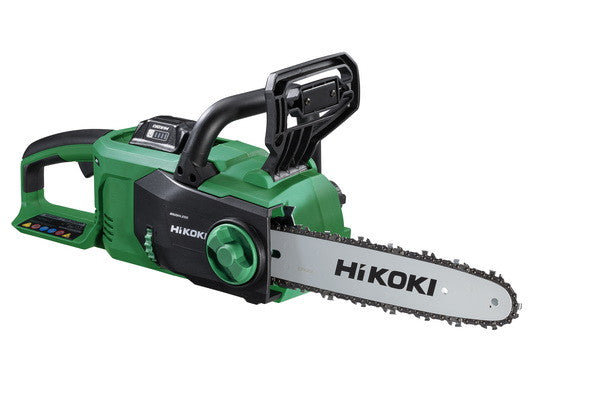

Pictures of CS3630DB

Features

  1. Guide rod length 300mm
  2. Equipped with brushless motor

MaruchiboltoBrushless Motor

Model Specifications Battery charger
CS3630DB ( XCP ) BSL36A18 x 1 UC18YSL3

Specification

name CS3630DB
motor Brushless DC Motor
ability Guide rod length 300mm
Chain saw blade type 90PX-045X
Pitch 9.5mm (3/8")
No-load chain saw blade speed 14.9m/s
Fuel tank capacity 100ml
Oil supply method Automatic lubrication (discharge volume adjustable)
Body size (length x height x width)

704×247×214mm

High torque motor design, capable of high-intensity cutting operations

  • By adding high torque capability to the motor, the chain saw bar will not stop easily even when cutting under heavy load.
    It is also possible to maneuver flexibly when cutting large log loads.

    Work Image

Equipped with high-performance, long-life brushless motor

  • Through the brushless motor and direct drive design (the sprocket and motor are directly connected), it provides light weight, low vibration and high durability.
    Easy to operate and long-term use.

    Internal structure diagram

No tools are required, making it very easy to change the saw chain without tools

  • The tightness of the chain saw blade can be easily adjusted by adjusting the dial.

    Large Knob The side cover can be removed by simply turning the large knob.


    Chain saw blade tension adjustment dial
    Chain saw blade tension can be adjusted without tools

    Tension dial and large knob

Works per Charge (approximately) *

Job Description Power How much work can be done on one charge (approximately)
Fir angle material 50×50mm 2.5Ah (MV) About 400 times
  • The values ​​are for reference only. Varies by material and condition.
