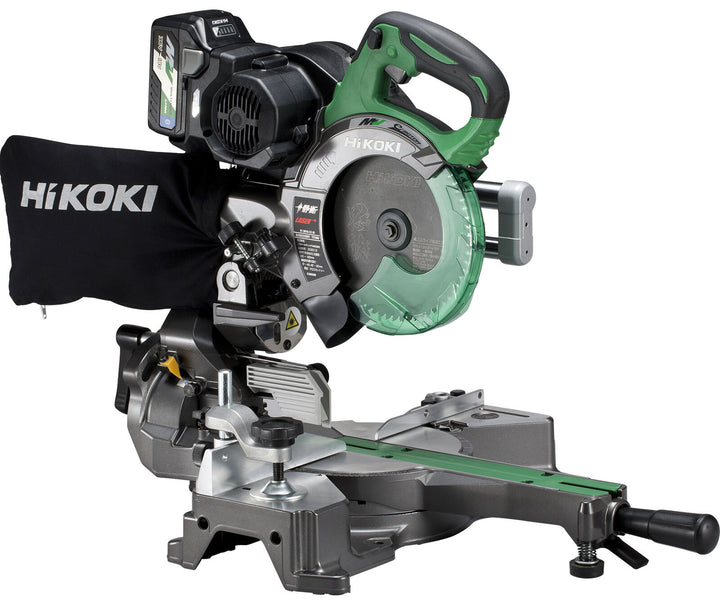

HiKOKI 36V Cordless Tabletop Sliding Circular Saw C3606DRB Machine Only - Band Saw Blade (Pre-order 10-14)
HiKOKI 36V Tabletop Sliding Circular Saw C3606DRB Blade diameter 165mm Dual tilt Maximum 8-inch width (245mm) cutting
Batteries and chargers are not included and are sold separately.
Band saw blade black bracket with built-in laser marking and LED light C3606DRB(K)(NN)
Super Blade Saw Black Shachi (Kuroshachi) Standard Accessories Specifications Now Available
Super Blade Saw Kuroshachi Click here for product details
The first cordless * machine capable of cutting a wide range of interior materials, with double-sided 8-inch cutting.
As of February 2020. At a domestic power tool manufacturer. (Based on our research) (165mm Class Cordless Tabletop Sliding Circular Saw)
It can be cut into 8-inch pieces and can be used with a variety of interior materials. Dual tilt allows you to work quickly without having to flip your material.

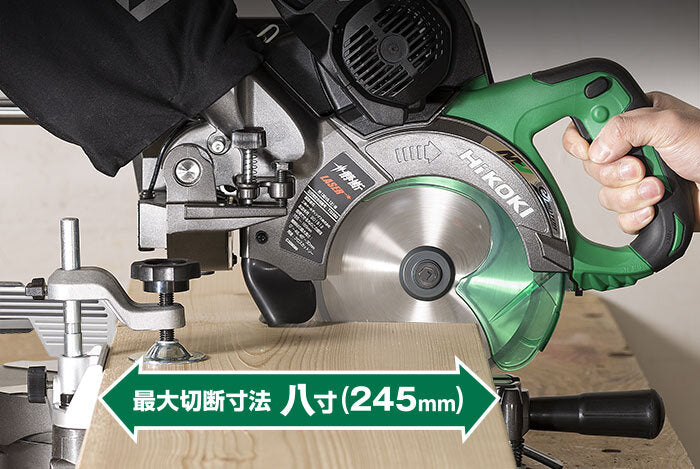

Maximum cutting size: 8 suns (245mm)

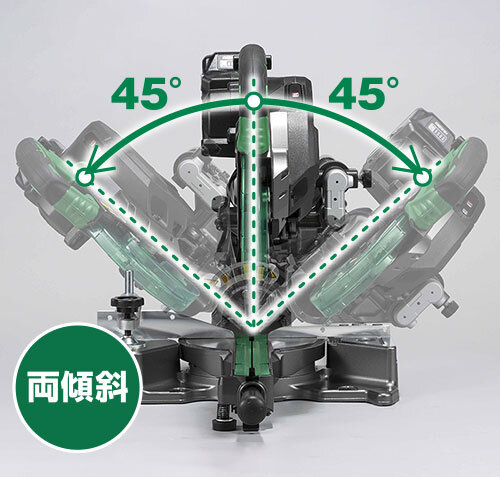

Two slopes

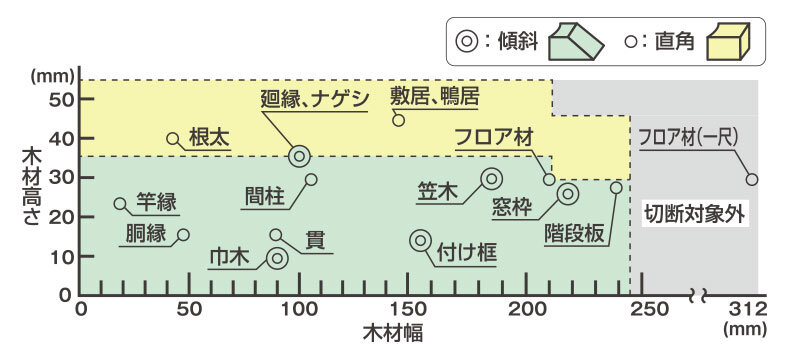

The amount of upholstery material that can be cut (approximately) varies by material.

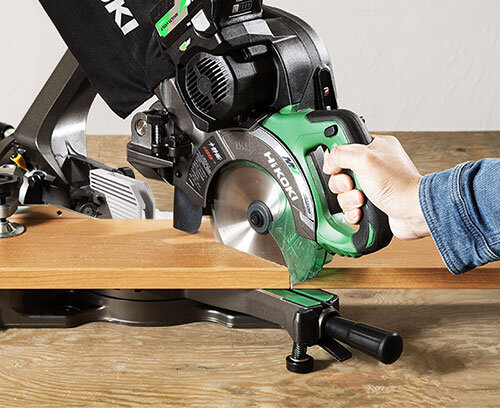

Able to cut Gosunkasagi at 45°
Lightweight (10.4 kg)
Compact body, light weight (10.4kg), easy to carry

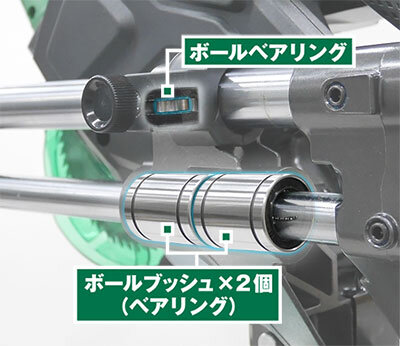

Triple bearing high precision cutting
The sliding structure adopts triple ball bearings, which makes the operation light and smooth, and the cutting accuracy is high.
Best-in-class low noise *1,2 and smooth cutting
The industry's first *1 two-stage belt drive system eliminates the roughness caused by gear impact, achieving smooth cutting with low noise.

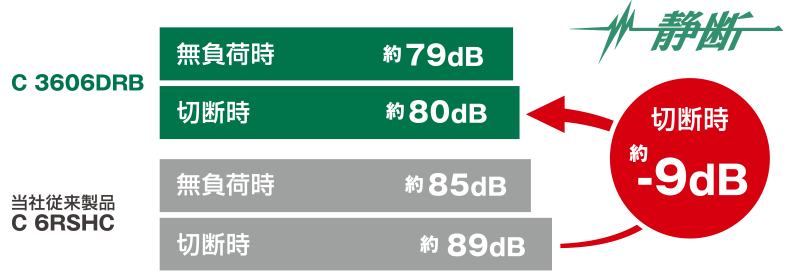

Volume comparison (estimated) *3 (Working condition: when cutting SPF (2” x 10”)

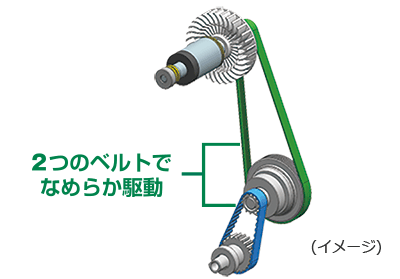

Two-stage belt drive system
As of February 2020. At a domestic power tool manufacturer. (Based on our research) (165mm Class Cordless Tabletop Sliding Circular Saw, 8 Inch Cutting)
Noise value: SPF at right angles (2” x 10”) (varies depending on conditions)
Values are for reference only (may vary depending on materials and conditions)

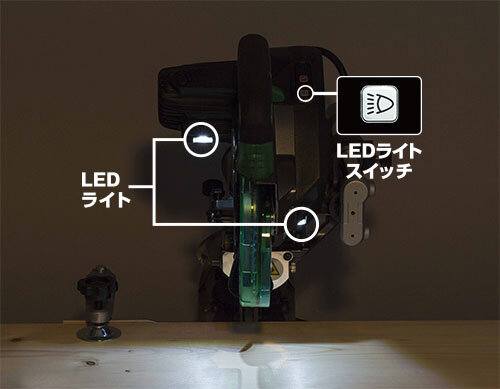

Built-in dual LED lights, wide lighting range, easy to use.
Since it is built into the body, the light will not be in the way while working or transporting. Depending on the job, you can choose lighting from both sides or one side.

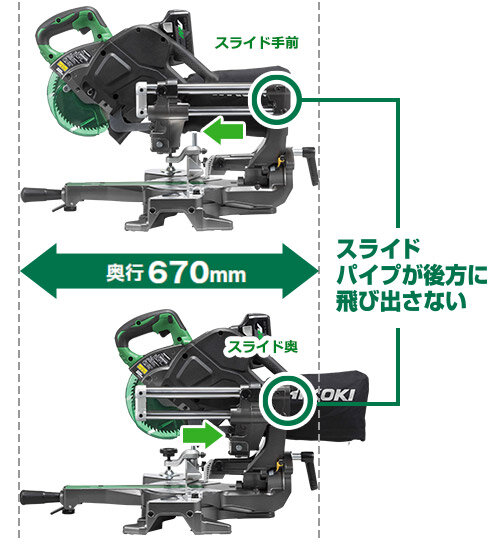

The sliding method allows easy operation even in narrow spaces
The sliding system for fixing the pipes allows wide cuts even in confined spaces or close to walls.

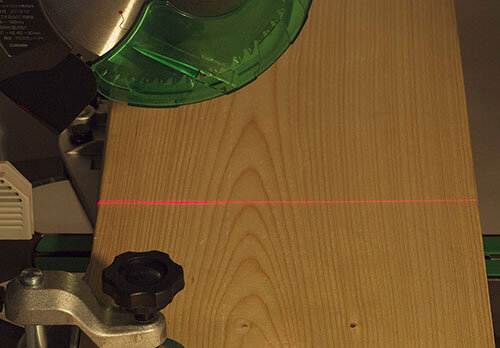

Laser marking machine can be used to align the ink line (with automatic shut-off function)
Other Features
- Equipped with active stop device
- Reduces kickback when starting the motor
- Equipped with a guard to prevent wood chips from being caught.
- Sliding noise reduction
Amount of work per charge
| Job Details | ah | Effort per Charge (Estimated) * | ||
| Circular Saw Black Sand Pool | Blade saw | |||
| Base Plate |
45° inclined cutting 15×90mm |
2.5Ah (multi-volt) | About 605 cuts | About 550 cuts |
|---|---|---|---|---|
| Floor material (plywood) |
Right angle cutting 12×180mm |
About 400 cuts | About 350 cuts | |
Values are for reference only (may vary depending on materials and conditions)
Specifications (Specifications)
Maximum cutting size (maximum height x maximum width) (mm)
| Saw Blades | ||||
|---|---|---|---|---|
| Tilt 45° to the left | Tilt 0° (right angle) | 45° right tilt | ||
| Turntable |
0° (Right angle) |
 30×245 36×210 (packaging board width 20)* |
 46×245 55×210 (packaging board width 20)* |
 15×245 20×210 (packaging board width 20)* |
| 45° on each side |
 30×165 36×140 (packaging board width 15)* |
 46×165 55×140 (packaging board width 15)* |
- | |
| Right 57° | - |
 46×125 55×105 (packaging board width 15)* |
- | |
| Right 45° | - | - |
 15×165 20×140 (packaging board width 15)* |
|
| Left 31° | - | - |
 15×195 20×170 (packaging board width 20)* |
|
When using the maximum cut size stated, there is a risk that the material will contact the bottom of the cutter head, so please work with caution.
| engine | Brushless DC Motor | ||
|---|---|---|---|
| Available saw blades | Outer diameter 155~165mm x hole diameter 20mm | ||
| No-load speed | 4,200min -1 (times/minute) | ||
| Angle cutting range | Left: 0~45°, Right: 0~57° | ||
| Inclined cutting range | Left: 0~45°, Right: 0~45° | ||
| Complex cutting range |
Left tilt: 0 to 45° Left/right swivel: 0 to 45° Right Tilt: 0 to 45° Swivel left: 0 to 31°, Swivel right: 0 to 45° |
||
| LED Light | White LED | ||
| Laser power | 1mW or less (Class 2) | ||
| Installation dimensions (width x depth) | 220×242 mm | ||
| Quality *1 | 10.4kg (with battery installed) | ||
| Available batteries *2 | Multi-volt battery (with remaining power display) | ||
| Battery | Multiple bolts | Model Name | BSL36A18BX (Compatible Cooling) (Bluetooth® Battery) |
| Voltage-Capacity | 36V-2.5Ah/18V-5.0Ah | ||
| Charging time *3 | About 25 minutes (when using UC18YDL2) | ||
| charger | Model Name | UC18YDL2 (with heat function) | |
Standard Accessories - Clean Band Saw Blades
