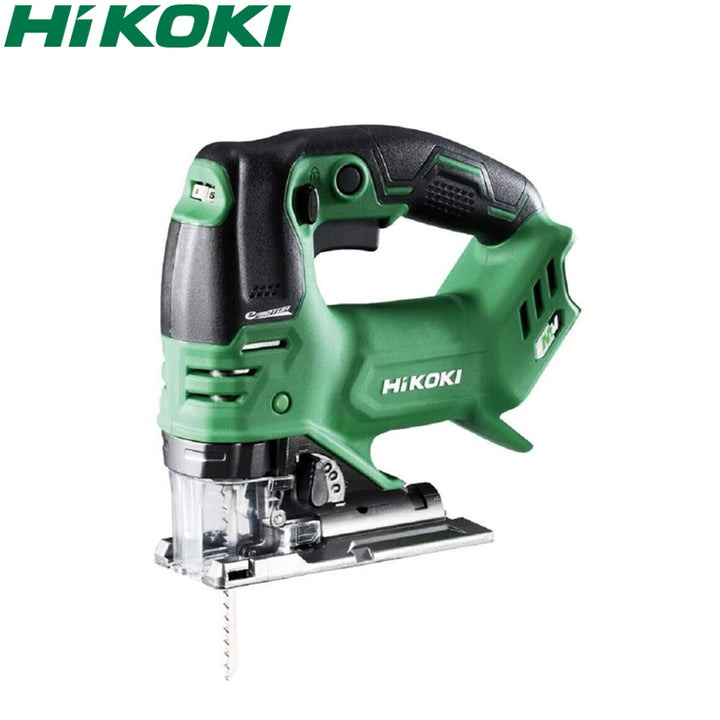

HIKOKI MV(36V) Brushless Wire Saw CJ36DA (clean machine)

sold in last hours
People are viewing this right now
HK$1,999.00 HK$1,180.00

Cleaner: Cash Purchase Offers

Cash Purchase Offers
Online Payment
Add to WishlistCompare
Ask a Question
Description

Features

  1. Applicable materials: wood 135mm, low carbon steel plate 10mm, stainless steel 3.2mm
  2. Equipped with brushless motor

  3. Model:CJ36DA(NN)

    Specification:

    Wood:135mm

    Low carbon steel plate: 10mm

    Stainless steel material: 3.2mm

    Number of strokes: 800-3,500/min (returns/minute)

    Stroke: 26mm

    Minimum cutting radius: 25mm (without guide plate)

    Inclined cutting angle: left and right 0-45°

    Function:

    Applicable materials: wood 135mm, mild steel plate 10mm, stainless steel 3.2mm

    Equipped with brushless motor.

    Constant speed control to keep the number of strokes constant.

    Tool-free saw blade replacement No tools are required.

    The saw blade can be installed and removed.

ability wood 135 mm
Low carbon steel plate 10 mm
Stainless steel 3.2 mm
Number of strokes 800-3,500/min (times/min)
Stroke 26 mm
Minimum cutting radius 25mm (without guide plate)
Inclined cutting angle Left and right 0-45°
Body size (length x height x width) 277×206×81mm (including BSL36A18)
weight 2.7kg (including BSL36A18, excluding blade)
Available batteries MV battery (specify remaining display) sold separately
Battery MV model / Purchase separately
Voltage capacity 36V-2.5Ah / 18V-5.0Ah
Charging time About 32 minutes (using UC18YSL3)
charger Model Name Buy separately
Standard accessories Single machine*1 suitcase

Note: The manufacturer reserves the right to change parts and accessories specifications etc. without prior notice

Cutting speed comparison (standard) *2

  • Cutting conditions:
    MDF (T24mm); Blade used: No. 41; Track position: III;

    Speed: Maximum; Thrust: 20N

    Fengye Hardware adheres to the principle of small profits but quick turnover and guarantees the cheapest price. -
    We will verify and test the machine in our store and will replace any defective product.
    * Store delivery, the choice of confidence

    Cutting conditions:
    SPCC (T2mm); Blade used: No. 123X; Track position: I ;

    Speed: 3; Thrust: 20N

High load cutting

    • The closing value is about 1/3 *2 smooth clipping, the closing value is low
    • High thrust force for cutting under heavy loads

    Cutting conditions:
    SPF (2 x 12); Blade used: No. 41; Track: Max;

    Speed: Maximum; Thrust: 30N (excluding its own weight)

    In the curve graph, the vertical axis is the vibration value and the horizontal axis is the thrust. Compared with our AC motor CJ160V, the vibration value of CJ36DA is about 1/3, and the thrust is also close to the high value of 50N.
  1. October 2019. At domestic power tool manufacturers in Japan (according to our research)
  2. Our conventional products: compared with the wire saw machine CJ160V. The values ​​are for reference only. Depends on material and conditions.

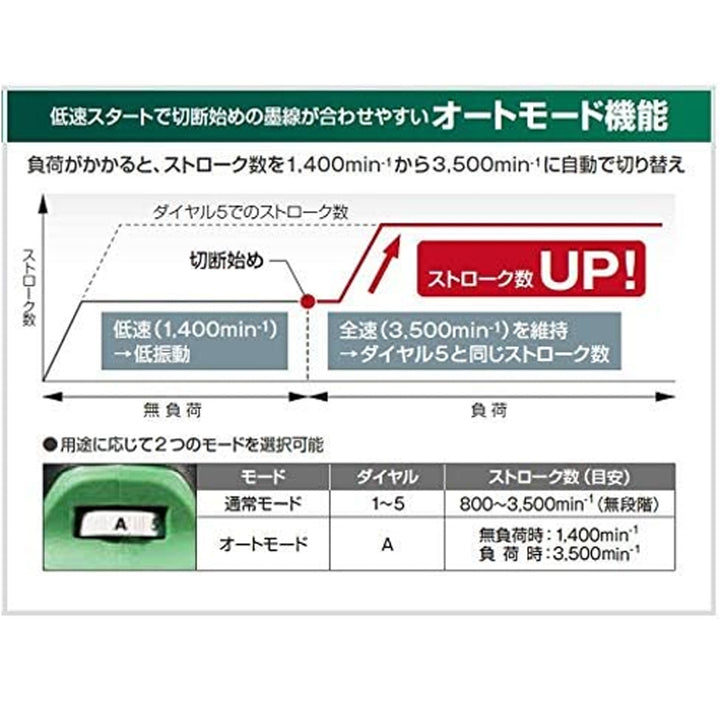

Automatic mode function to easily match the ink line at the start of low-speed cutting

When a load is applied, the stroke rate automatically switches from 1400/min (times/min) to 3500/min (times/min) to maintain the same stroke rate as turntable 5.

Starting with low vibration (1,400 min-1), the stroke rate increases as load is applied after the start of cutting and maintains the same full speed as the turntable 5 (3,500 min-1).

Two modes can be selected according to the purpose

  • Adjustment dial
    model dial Number of strokes (standard)
    Normal mode 1-5 800-3,500/minute (stepless)
    Automatic mode A No-load: 1400/min (times/min)
    Load: 3500/min (times/min)

Constant speed control to keep the number of strokes constant

Tool-free saw blade replacement

  • The saw blade can be installed and sensed without the use of tools.
    Tool-free blade replacement
